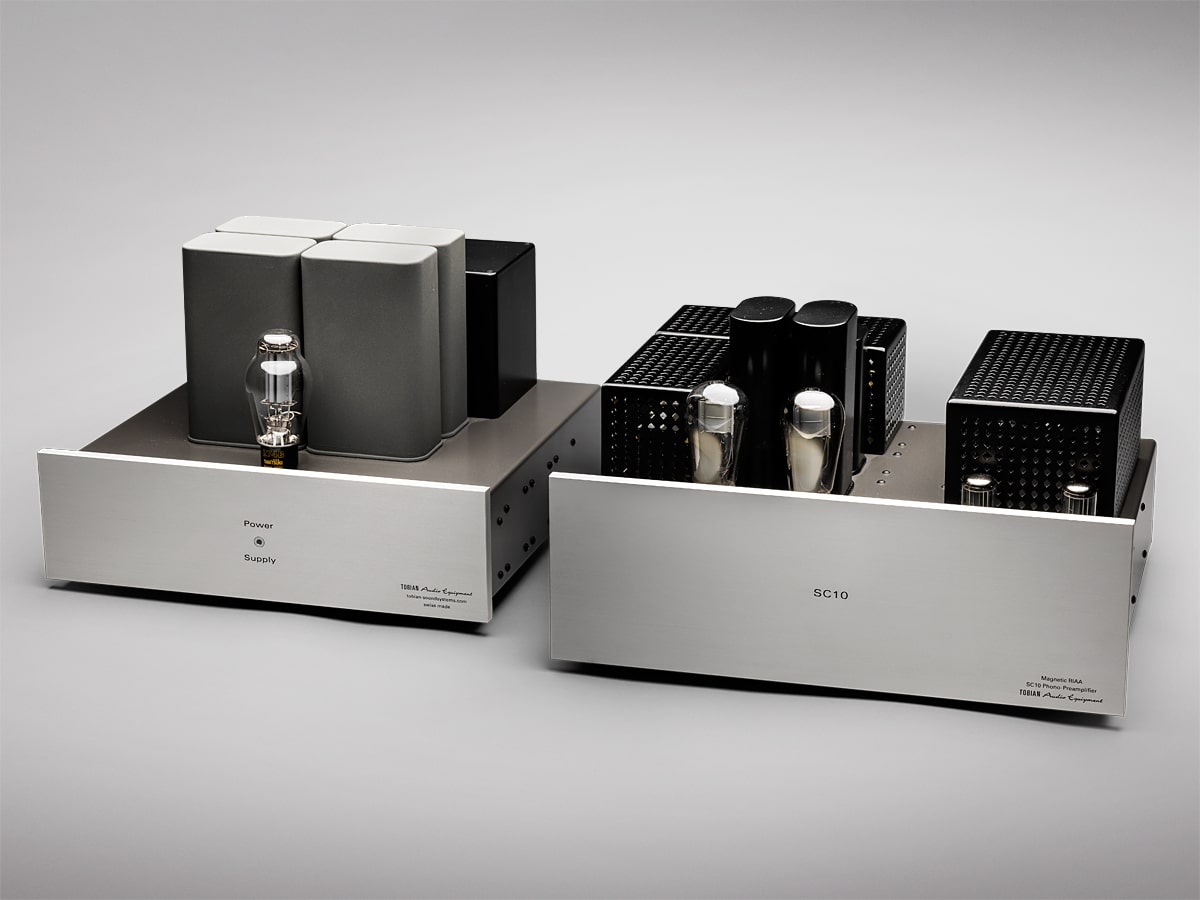

SC10 - Phono PreAmplifier
After many years of development we are proud to introduce to the market our new State of the Art, LCR all transformer coupled Reference Phono preamplifier SC10.
The SC10 is completely hand wired with 99.99% pure Silver wire (point to point) and all components were newly developed for the SC10.
As an example, we can name a few like LCR inductors, all transformers leading with the permalloy output transformer with over 350H (Henrys) with a constant 100 ohm output impedance which is unique in the market.
We are mentioning several of those technical details, as we are extremely confident that those elements coupled with massively external power supply are the key anchor points which are creating the unforgettable rendering of the recorded material and ultimately creating one of a kind listening experience. Advantages of the implemented technical solutions and meticulous attention to details in both selection of components and their application becomes evident after the first tone You hear with SC10.
I am extremely proud of the entire team that has put countless hours into development of this exceptional SC10 LCR Phono Preamplifier.
unbalanced 600 ohm - 4 X 417A or EC8010
balanced 1200 ohm - 8 X 417A or EC8010
output stage 10 DHT triode
Tube Rectifier 274B
all transformer coupled
hand made input selector
output Impedance 100 ohm
paper oil power supply
complete hand wired, point to point (99.99%) pure Silver
weight: phono section 28 kg
weight: power supply 26 kg
Power Supply 28kg
dimensions: 420mm x 320mm x 400mm W x H x D
dimensions: 470mm x 320mm x 480mm W x H x D
handmade in Stanstaad Lake Lucerne, Switzerland
